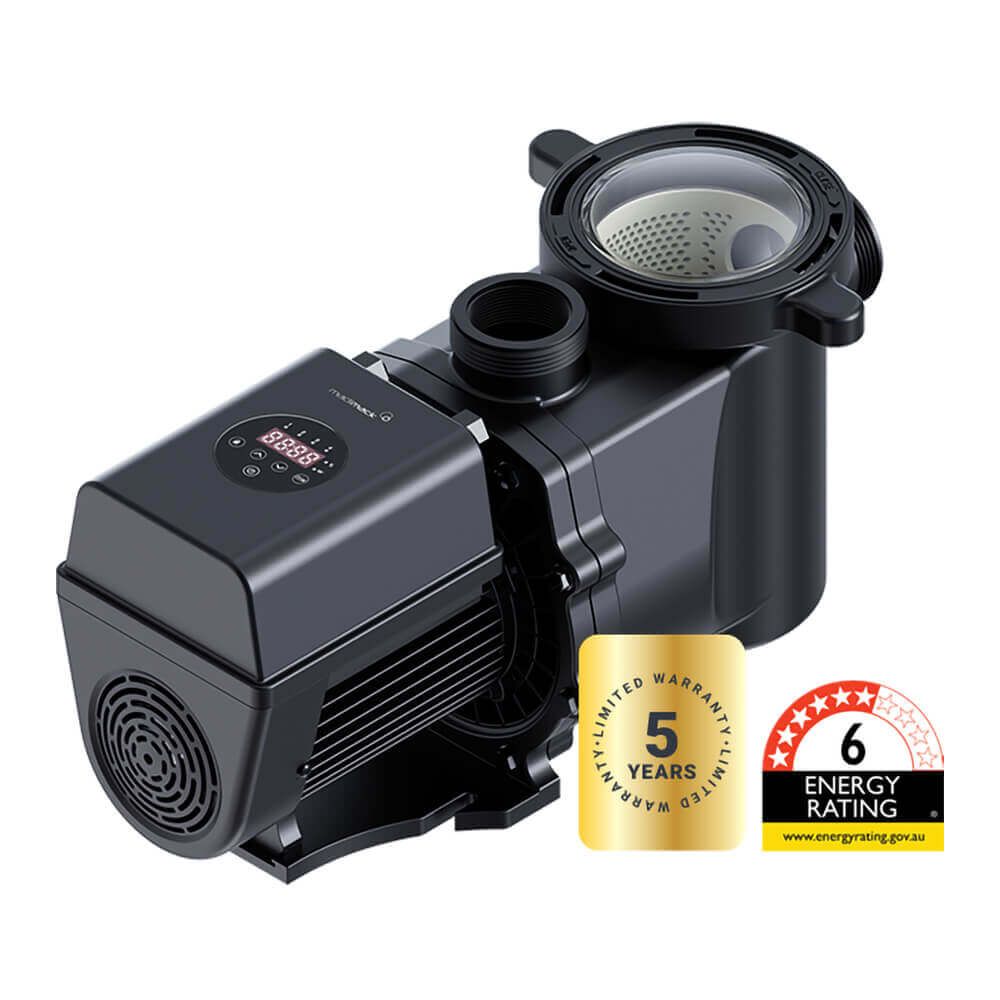

The Madimack InverFlow Plus F300i (1.0 HP) sets a new benchmark in pool pump innovation – combining advanced inverter technology, smart Wi-Fi control, and whisper-quiet operation. Powered by InverMAC technology, this compact, high-efficiency DC brushless motor adapts its speed to your pool’s needs, delivering up to 80% energy savings.
Retrofit-ready to replace most major brands without re-plumbing, the F300i simplifies installation and offers advanced features like Skimmer Mode for automatic surface cleaning, Active Energy Monitoring, and 4 programmable timers for daily operation. Built for reliability and backed by Madimack’s industry-first 5-year replacement warranty, it’s the perfect upgrade for a smarter, quieter, and more efficient pool system.
Why Choose the Madimack InverFlow Plus F300i?
-
InverMAC Technology
Enhanced inverter motor with precise speed control for optimal efficiency and performance. -
DC Brushless Motor
Permanent magnetic motor for long lasting energy efficiency. -
Wi-Fi + App Control
Operate, schedule, and monitor remotely via the Madimack app. -
Skimmer Mode Function
Automatically activates surface-skimming cycles to remove debris and keep your pool pristine. -
Quiet Operation (~36 dB)
Advanced sound suppression ensures peaceful performance in any backyard setting. -
Active Energy Monitor
Tracks real-time power usage and performance for smarter energy management.
-
Running Capacity 30%–100%
Fine-tune operation for any pool size with full inverter control and flexible set points. -
4 Timers for Daily Operation
Customise up to four independent run cycles per day to match pool usage patterns. -
Retrofit Ready
Direct replacement for existing pumps — no plumbing changes needed for common brands. -
Compact Design
Fits neatly into tight equipment spaces for easy installation and maintenance access. -
Loss of Prime & Low-Flow Protection
Automatically shuts down to prevent pump damage during low or no-flow conditions. -
5-Year Replacement Warranty
Industry-leading coverage offering long-term reliability and complete peace of mind.
Features:
- Full-inverter InverMAC DC brushless motor for efficient variable speed operation
- 6-Star energy-rated performance for maximum savings and sustainability
- Noise down to 35.4 dB at 30% speed – ideal for residential environments
- Wi-Fi connectivity with app-based remote scheduling and control
- Skimmer/Boost Mode for enhanced surface cleaning cycles
- Energy-efficient operation, reducing consumption by up to 80%
- Retrofits Astral Pool CTX, E, FX, and XP-Series pumps – no re-plumbing required
- Compact design fits easily in tight equipment spaces
- Digital display with touch controls for speed and timer settings
- Self-priming and dry-run protection for safe, reliable use
- 40/50 mm unions for easy plumbing compatibility
- Suitable for saltwater pools up to 3,500 ppm
- 5-year residential warranty / 2-year commercial warranty
Technical Specifications
| Model | InverFlow Plus 1HP | InverFlow Plus 1.5HP | InverFlow Plus 2HP |
|---|---|---|---|
| Power | |||
| Voltage Range | 220–240V 50/60Hz | ||
| Total Horse Power (THP) | 1.0 | 1.5 | 2.0 |
| Input Power (kW) | 0.75 | 1.05 | 1.5 |
| Running Amps (A) | 3.5 | 4.6 | 6.5 |
| Flow Performance | |||
| Max Flow (Qmax) L/Min | 367 | 425 | 517 |
| Max Head (Hmax) - Metre | 16 | 18 | 20.5 |
| Flow @ 8 m Head (L/min) | 300 | 367 | 500 |
| Flow @ 10 m Head (L/min) | 233 | 300 | 467 |
| Physical Details | |||
| Dimensions L × W × H (mm) | 544 × 252 × 288 | ||
| Pipe Connections | 40/50 mm Unions | ||
| Noise Level (30 % Speed) | 35.4 | 35.4 | 36 |
| Noise Level (100 % Speed) | 51.4 | 54.9 | 57.5 |
| Environmental Conditions | |||
| Ambient Temperature | 25.5 °C – 40 °C | ||
| Water Temperature | 5 °C – 50 °C | ||
| Salt Level Tolerance | Up to 3,500 ppm | ||
* Specifications displayed refer to 230V supply and can vary with voltage fluctuations.
2 years warranty for product installed in commercial application
